74CBTLV3257QG - Renesas Electronics

Description: The 74CBTLV3257 is a quad 2:1 multiplexer/demultiplexer. The select (S) input controls the data flow. The multiplexers/demultiplexers are enabled when the output-enable (OE) input is low. The 74CBTLV3257 operates at -40C to +85C

Download 74CBTLV3257QG Model

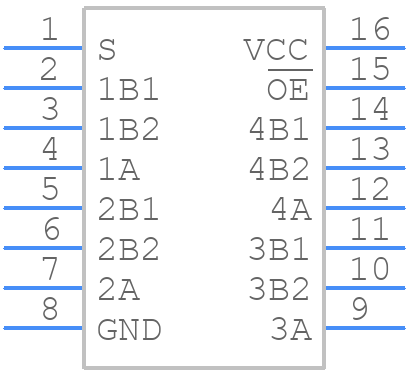

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74CBTLV3257QG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG16-ren1
click to zoom
3D Models
74CBTLV3257QG - Renesas Electronics  - 3D model - Small Outline Packages - PCG16-ren1
click to zoom

74CBTLV3257QG Details

  • Manufacturer Part Number:

    74CBTLV3257QG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    PCG16

  • Country Of Origin:

    Malaysia, Philippines

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Control Type:

    ENABLE LOW

  • Family:

    CBTLV/3B

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    BUS EXCHANGER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    4

  • Number of Ports:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.25 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

74CBTLV3257QG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74CBTLV3257QG is 2.3V to 3.6V, with a typical voltage of 3.3V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Also, follow the recommended layout guidelines in the datasheet.
  • The maximum frequency of operation for the 74CBTLV3257QG is 250 MHz, but this can vary depending on the specific application and system design.
  • Power sequencing is not critical for the 74CBTLV3257QG, but it's recommended to power up the VCC pin before the input signals to ensure proper device operation.
  • The 74CBTLV3257QG has an ESD protection level of ±2 kV for human-body model (HBM) and ±1 kV for charged-device model (CDM).
