74FCT377CTQG8 - Renesas Electronics

Description: The 74FCT377T is an octal D flip-flop that has eight edge-triggered, D-type flip-flops with individual D inputs and O outputs. The common buffered Clock (CP) input loads all flip-flops simultaneously when the Clock Enable (CE) is low. The register is fully edge-triggered. The 74FCT377T operates at -40C to +85C

Download 74FCT377CTQG8 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 74FCT377CTQG8 model

Email notifications will be applied after download.

Send part feedback

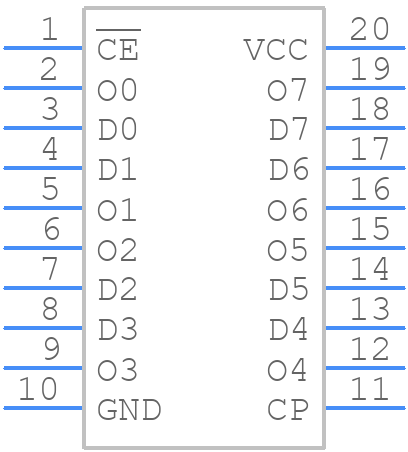

Symbol

74FCT377CTQG8 - Renesas Electronics - PCB symbol

PCB Footprints

74FCT377CTQG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG-20

3D Models

74FCT377CTQG8 - Renesas Electronics - 3D model - Small Outline Packages - PCG-20

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74FCT377CTQG8
Part Number 74FCT377CTQG8
Manufacturer Renesas Electronics
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PCG-20
Released Date Jul 12, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

74FCT377CTQG8 Details

Manufacturer Part Number:
74FCT377CTQG8
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

74FCT377CTQG8 Overview

Use the download button to access the 74FCT377CTQG8 schematic symbol, PCB footprint, and 3D model.
