74FCT3807EQGI - Renesas Electronics

Description: The FCT3807 is a 3.3V clock driver built using advanced CMOS technology. This low skew clock driver offers 1:10 fanout. The large fanout from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.

Download 74FCT3807EQGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

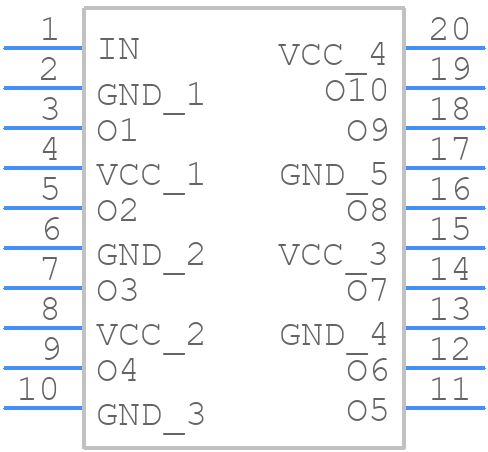

Symbol
74FCT3807EQGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
74FCT3807EQGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG 20_
click to zoom
3D Models
74FCT3807EQGI - Renesas Electronics - 3D model - Small Outline Packages - PCG 20_
click to zoom

74FCT3807EQGI Details

  • Manufacturer Part Number:

    74FCT3807EQGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Package Description:

    QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PCG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    FCT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.69 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    195 mA

  • Propagation Delay (tpd):

    2 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.94 mm

74FCT3807EQGI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74FCT3807EQGI is 4.5V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed to reduce signal reflections.
  • While the 74FCT3807EQGI is specified for 5V operation, it can be used in a 3.3V system, but the output voltage levels may not meet the required specifications. Consult the datasheet and perform thorough testing before using it in a 3.3V system.
  • Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines to prevent overheating.
  • Yes, follow the recommended PCB layout guidelines, such as keeping the input and output traces separate, using a solid ground plane, and minimizing trace lengths to reduce noise and signal degradation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74FCT3807EQGI Overview

Use the download button to access the 74FCT3807EQGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74FCT, or try a keyword search, such as Clock Drivers
