Description:The 74FCT3807S is a low skew, single input to ten output, LVCMOS clock buffer. The 74FCT3807S has best in class additive phase Jitter of sub 50 fsec.
The recommended operating voltage range for the 74FCT3807SPGGI8 is 4.5V to 5.5V, with a typical voltage of 5V.
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short and away from noise sources, and use termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
While the 74FCT3807SPGGI8 is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the output voltage swing will be reduced, and the device may not meet all the specified timing parameters. Consult the datasheet and application notes for more information.
To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB thermal design guidelines. Monitor the device temperature and adjust the operating conditions to prevent overheating.
Yes, to minimize EMI and radiation, follow good PCB layout practices such as keeping signal traces short and away from the device's power pins, using a solid ground plane, and avoiding parallel signal traces. Additionally, consider using EMI shielding and filtering components as needed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74FCT3807SPGGI8 Overview

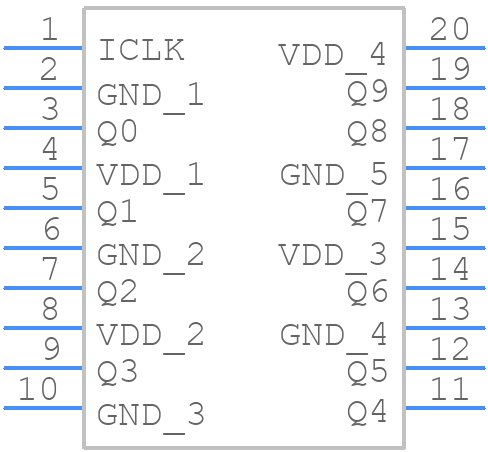

Use the download button to access the 74FCT3807SPGGI8 schematic symbol, PCB footprint, and 3D model.
