74FCT3807SQGI - Renesas Electronics

Description: The 74FCT3807S is a low skew, single input to ten output, LVCMOS clock buffer. The 74FCT3807S has best in class additive phase Jitter of sub 50 fsec.

Download 74FCT3807SQGI Model

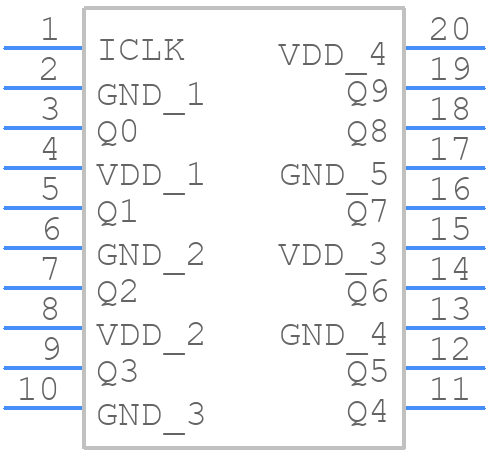

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74FCT3807SQGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG 20_
click to zoom
3D Models
74FCT3807SQGI - Renesas Electronics  - 3D model - Small Outline Packages - PCG 20_
click to zoom

74FCT3807SQGI Details

  • Manufacturer Part Number:

    74FCT3807SQGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PCG20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Family:

    FCT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.6868 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    4.5 ns

  • Same Edge Skew-Max (tskwd):

    0.065 ns

  • Seated Height-Max:

    1.7272 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.937 mm

74FCT3807SQGI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74FCT3807SQGI is 4.5V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Also, follow the recommended layout guidelines in the datasheet.
  • No, the 74FCT3807SQGI is not recommended for use in 3.3V systems. It is designed to operate at 5V, and using it at 3.3V may result in reduced performance or malfunction.
  • The maximum clock frequency supported by the 74FCT3807SQGI is 100 MHz.
  • To handle thermal issues, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines in the datasheet.
