74FCT3807SQGI8 - Renesas Electronics

Description: The 74FCT3807S is a low skew, single input to ten output, LVCMOS clock buffer. The 74FCT3807S has best in class additive phase Jitter of sub 50 fsec.

Download 74FCT3807SQGI8 Model

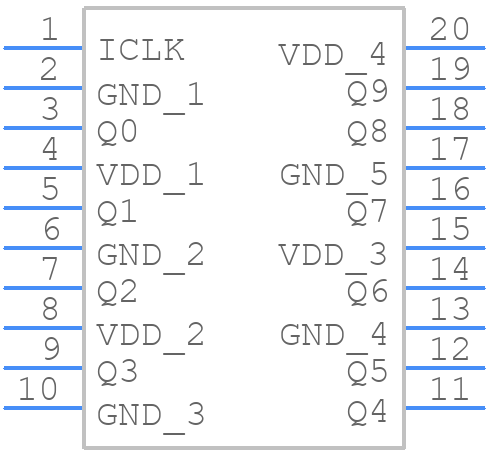

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74FCT3807SQGI8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG20 (QSOP 20)---
click to zoom
3D Models
74FCT3807SQGI8 - Renesas Electronics  - 3D model - Small Outline Packages - PCG20 (QSOP 20)---
click to zoom

74FCT3807SQGI8 Details

  • Manufacturer Part Number:

    74FCT3807SQGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PCG20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Family:

    FCT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.6868 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    4.5 ns

  • Same Edge Skew-Max (tskwd):

    0.065 ns

  • Seated Height-Max:

    1.7272 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.937 mm

74FCT3807SQGI8 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74FCT3807SQGI8 is 100 MHz.
  • The propagation delay of the 74FCT3807SQGI8 is typically 3.5 ns.
  • The power consumption of the 74FCT3807SQGI8 is typically 20 μA per gate at 5 V and 25°C.
  • Yes, the 74FCT3807SQGI8 is 5V tolerant, meaning it can accept input voltages up to 5.5V without damage.
  • The package type of the 74FCT3807SQGI8 is a 48-pin shrink small outline package (SQGI8).
