74FCT388915TDPYG - Renesas Electronics

Description: The FCT388915T uses phase-lock loop technology to lock the frequency and phase of outputs to the input reference clock. It provides low skew clock distribution for high performance PCs and workstations. One of the outputs is fed back to the PLL at the FEEDBACK input resulting in essentially zero delay across the device. The PLL consists of the phase/ frequency detector, charge pump, loop filter and VCO. The VCO is designed for a 2Q operating frequency range of 40MHz to f2Q Max. The FCT388915T provides 8 out

Download 74FCT388915TDPYG Model

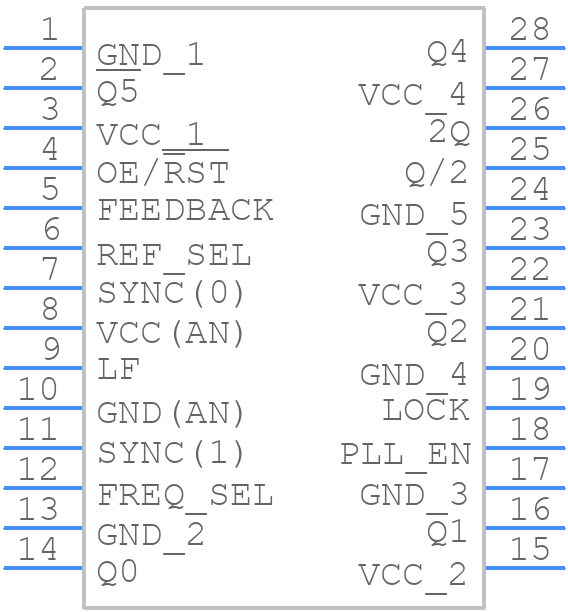

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74FCT388915TDPYG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PY/PYG PACKAGE OUTLINE 5.3MM BODY 0.65MM PITCH
click to zoom
3D Models
74FCT388915TDPYG - Renesas Electronics  - 3D model - Small Outline Packages - PY/PYG PACKAGE OUTLINE 5.3MM BODY 0.65MM PITCH
click to zoom

74FCT388915TDPYG Details

  • Manufacturer Part Number:

    74FCT388915TDPYG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PYG28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    FCT

  • Input Conditioning:

    SCHMITT TRIGGER MUX

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.032 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inverted Outputs:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    7

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    120 mA

  • Prop. Delay@Nom-Sup:

    1.3 ns

  • Propagation Delay (tpd):

    1.3 ns

  • Same Edge Skew-Max (tskwd):

    0.8 ns

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.29 mm

  • fmax-Min:

    133 MHz
