74HC02D - Toshiba

Description: NOR Gate 4-Element 2-IN CMOS 14-Pin SOIC T/R

Download 74HC02D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

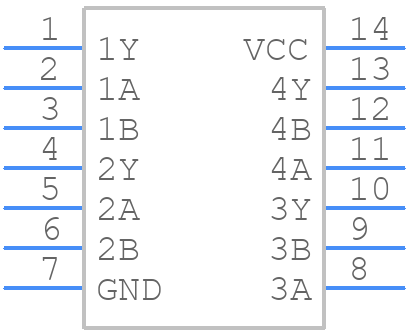

74HC02D - Toshiba - PCB symbol
click to zoom
PCB Footprints
74HC02D - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - soic 14
click to zoom
3D Models
74HC02D - Toshiba - 3D model - Small Outline Packages - soic 14
click to zoom

74HC02D Details

  • Manufacturer Part Number:

    74HC02D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-05-24

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Logic IC Type:

    NOR GATE

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    95 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

74HC02D Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the 74HC02D is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper operation, the 74HC02D should be powered with a stable voltage supply between 2.0 V and 5.5 V, with a recommended operating voltage of 5.0 V. Additionally, decoupling capacitors should be used to filter out noise and ensure stable operation.
  • The 74HC02D can sink or source up to 25 mA of current per output, but it's recommended to limit the current to 10 mA or less to ensure reliable operation.
  • The 74HC02D has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of -40°C to 85°C, and proper heat dissipation measures should be taken to prevent overheating.
  • To minimize noise and ensure reliable operation, it's recommended to use a ground plane, keep signal traces short and direct, and avoid running signal traces near the power pins. Additionally, it's recommended to use a bypass capacitor between the power pins to filter out noise.
