74HC125N footprint, schematic symbol and 3D model by Nexperia

Symbol

click to zoom

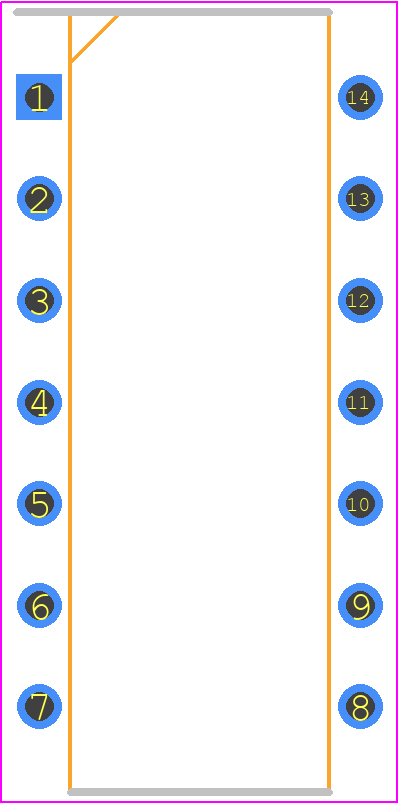

PCB Footprints

74HC125N - Nexperia PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-14-1

click to zoom

3D Models

74HC125N - Nexperia - 3D model - Dual-In-Line Packages - DIP-14-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74HC125N
Part Number 74HC125N
Manufacturer Nexperia
Pin Count 14
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP-14-1
Released Date Jan 12, 2017
Last Modified Date Jun 2, 2025 4:35 AM UTC
Pinout / Pin List Click Here (Member Only)

74HC125N Details

Manufacturer Part Number:
74HC125N
Manufacturer:
Nexperia

Trust Checks

System Verified

74HC125N Overview

Use the download button to access the 74HC125N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 74HC1, or try a keyword search, such as Bus Driver/Transceivers
