74HC166PW,112 - Nexperia

Description: 74HC(T)166 - 8-bit parallel-in/serial-out shift register@en-us

Download 74HC166PW,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

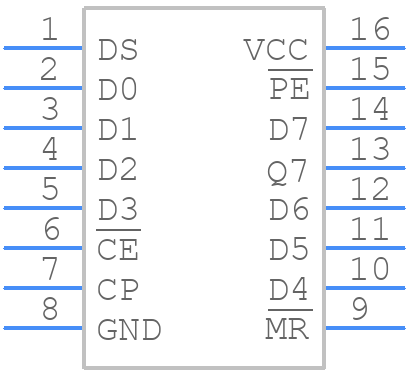

74HC166PW,112 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC166PW,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT403-1
click to zoom
3D Models
74HC166PW,112 - Nexperia - 3D model - Small Outline Packages - SOT403-1
click to zoom

74HC166PW,112 Details

  • Manufacturer Part Number:

    74HC166PW,112

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP1-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT403-1

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-11-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    CLOCK INHIBIT

  • Count Direction:

    RIGHT

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    PARALLEL IN SERIAL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Propagation Delay (tpd):

    225 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    20 MHz

74HC166PW,112 Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the 74HC166PW,112 is 30 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the timing diagrams and clock frequency limitations in the datasheet for specific operating conditions.
  • To ensure reliable data transfer, make sure to follow the recommended operating conditions, such as voltage and temperature ranges, and ensure that the clock signal is clean and within the specified frequency range. Also, use proper PCB layout and signal routing to minimize noise and signal degradation.
  • The 74HC166PW,112 is a CMOS device and can operate with a power supply voltage from 2V to 6V. However, it's recommended to use a 3.3V or 5V power supply to ensure compatibility with most digital systems. Be sure to check the datasheet for specific voltage and current requirements.
  • Asynchronous inputs can cause metastability issues in the 74HC166PW,112. To handle asynchronous inputs, use synchronization circuits or registers to synchronize the input data with the clock signal. You can also use input synchronizers or FIFOs to ensure data integrity.
  • The 74HC166PW,112 can drive a maximum capacitive load of 50 pF, but this can vary depending on the operating frequency and voltage. Be sure to check the datasheet for specific capacitive load limitations and use proper PCB layout and decoupling to minimize capacitive loading.
