74HC253BQ-Q100X - Nexperia

Description: 74HC253-Q100; 74HCT253-Q100 - Dual 4-input multiplexer; 3-state@en-us

Download 74HC253BQ-Q100X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

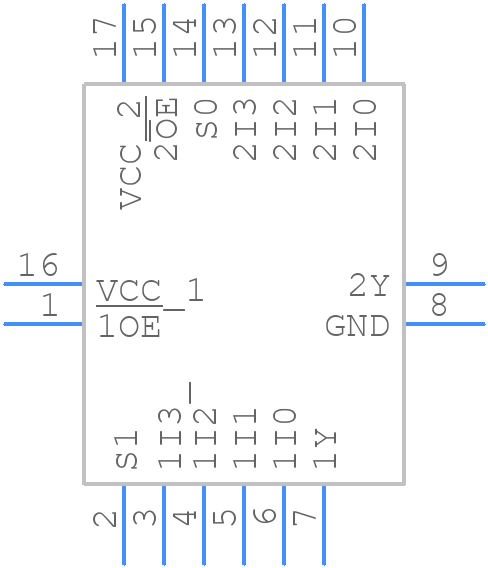

74HC253BQ-Q100X - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC253BQ-Q100X - Nexperia PCB footprint - Other - Other - 74HC253BQ-Q100X
click to zoom
3D Models
74HC253BQ-Q100X - Nexperia - 3D model - Other - 74HC253BQ-Q100X
click to zoom

74HC253BQ-Q100X Details

  • Manufacturer Part Number:

    74HC253BQ-Q100X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Logic IC Type:

    MULTIPLEXER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC253BQ-Q100X Overview

Use the download button to access the 74HC253BQ-Q100X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC2, or try a keyword search, such as Multiplexer/Demultiplexers
