74HC4053D(BJ) - Toshiba

Description: Encoders, Decoders, Multiplexers & Demultiplexers CMOS Logic IC 500mW 2.0 to 6.0V

Download 74HC4053D(BJ) Model

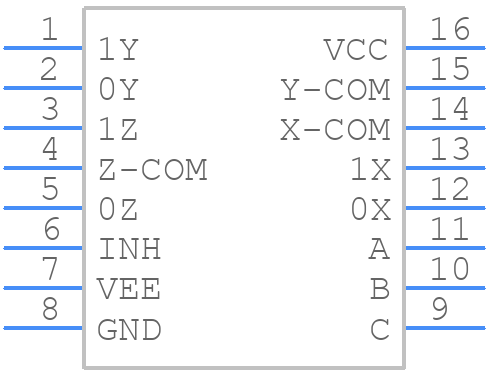

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC4053D(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16
click to zoom
3D Models
74HC4053D(BJ) - Toshiba  - 3D model - Small Outline Packages - SOIC16
click to zoom

74HC4053D(BJ) Details

  • Manufacturer Part Number:

    74HC4053D(BJ)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.2 mm

  • Neg Supply Voltage-Min (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Normal Position:

    NC

  • Number of Channels:

    2

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    5 Ω

  • On-state Resistance-Max (Ron):

    120 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    280 ns

  • Switch-on Time-Max:

    280 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

74HC4053D(BJ) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74HC4053D(BJ) is 10 MHz.
  • To ensure signal integrity, use a low-impedance output driver, minimize trace lengths, and use proper termination and shielding to reduce noise and crosstalk.
  • Yes, the 74HC4053D(BJ) can be used as a level shifter, but it's not recommended as it's not designed for level shifting and may not provide the required voltage translation.
  • The maximum voltage rating for the 74HC4053D(BJ) is 7 V, but it's recommended to operate within the recommended operating voltage range of 2 V to 6 V.
  • To reduce power consumption, use a low-power mode, reduce the clock frequency, and minimize the number of switching transitions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC4053D(BJ) Overview

Use the download button to access the 74HC4053D(BJ) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC4, or try a keyword search, such as Multiplexers or Switches
