- Part Number 74HC541AF
- Manufacturer Toshiba
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOP20-
- Released Date Jan 17, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
74HC541AF Details
-
Manufacturer Part Number:
74HC541AF
-
Manufacturer:
Toshiba America Electronic Components
Trust Checks
Community Provided
System Verified
Community Approved
74HC541AF Overview

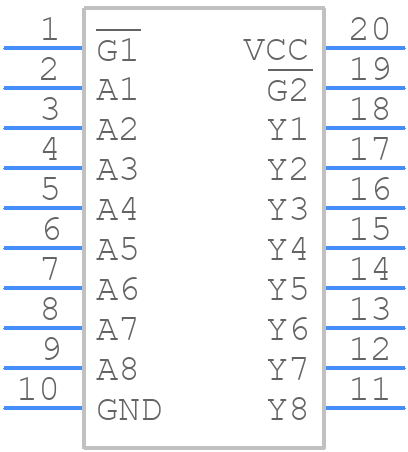

Use the download button to access the 74HC541AF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC5,
or try a keyword search, such as Bus Driver/Transceivers
