74HC595XWSS16G/TR - SGMICRO

Description: 8-Bit Serial-In/Serial-Out or Parallel-Out Shift Register with 3-State Controlled Outputs

Download 74HC595XWSS16G/TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 74HC595XWSS16G/TR model

Email notifications will be applied after download.

Send part feedback

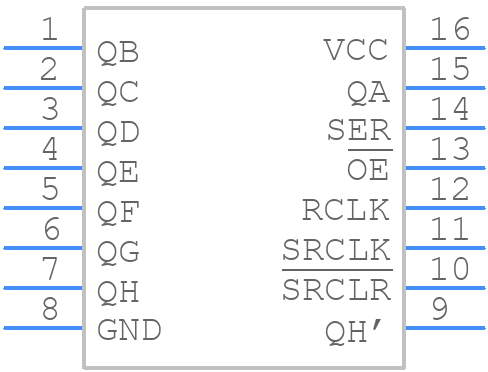

Symbol

74HC595XWSS16G/TR - SGMICRO - PCB symbol

PCB Footprints

74HC595XWSS16G/TR - SGMICRO PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-16 (209mil)

3D Models

74HC595XWSS16G/TR - SGMICRO - 3D model - Small Outline Packages - SSOP-16 (209mil)

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74HC595XWSS16G/TR
Part Number 74HC595XWSS16G/TR
Manufacturer SGMICRO
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SSOP-16 (209mil)
Released Date Dec 31, 2025
Last Modified Date Dec 31, 2025 4:47 AM UTC
Pinout / Pin List Click Here (Member Only)

74HC595XWSS16G/TR Details

Manufacturer Part Number:
74HC595XWSS16G/TR
Manufacturer:
SG Micro Corp

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

74HC595XWSS16G/TR Overview

Use the download button to access the 74HC595XWSS16G/TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 74HC5, or try a keyword search, such as Shift Registers
