74HC86N footprint, schematic symbol and 3D model by Nexperia

Symbol

click to zoom

PCB Footprints

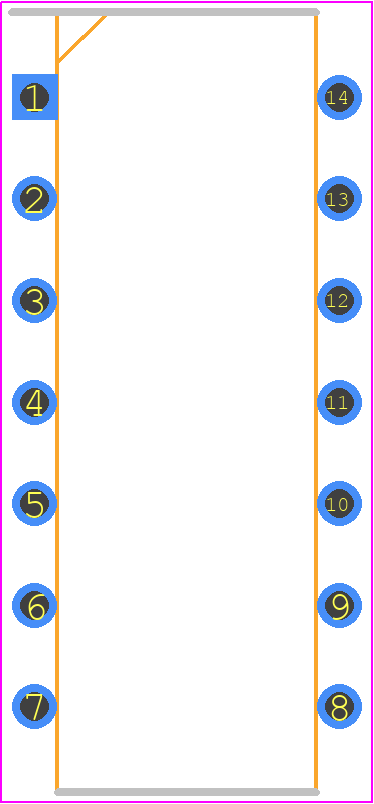

74HC86N - Nexperia PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SOT27-1 (14 leads (300 mil))

click to zoom

3D Models

74HC86N - Nexperia - 3D model - Dual-In-Line Packages - SOT27-1 (14 leads (300 mil))

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74HC86N
Part Number 74HC86N
Manufacturer Nexperia
Pin Count 14
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - SOT27-1 (14 leads (300 mil))
Released Date Mar 23, 2016
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

74HC86N Details

Manufacturer Part Number:
74HC86N
Manufacturer:
Nexperia

Trust Checks

System Verified

74HC86N Overview

Use the download button to access the 74HC86N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 74HC8, or try a keyword search, such as Gates

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
