Part Image

74HCT154DB,118 - Nexperia

Description: 74HC(T)154 - 4-to-16 line decoder/demultiplexer@en-us

Download 74HCT154DB,118 Model

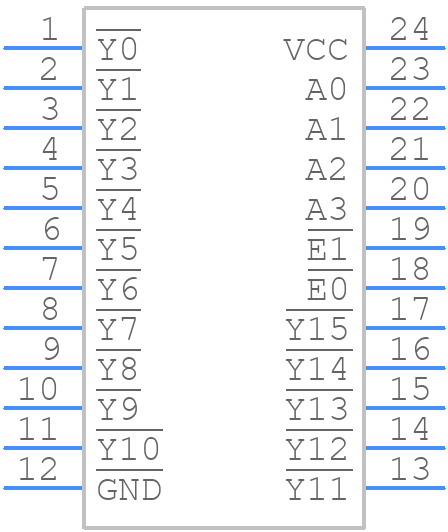

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HCT154DB,118 - Nexperia PCB footprint - Other - Other - 74HCT154DB,118
click to zoom

74HCT154DB,118 Details

  • Manufacturer Part Number:

    74HCT154DB,118

  • Brand Name:

    Nexperia

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP2

  • Package Description:

    SSOP,

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOT340-1

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1995-11-01

  • Manufacturer:

    Nexperia

  • Risk Rank:

    8.8

  • Additional Feature:

    2 ENABLE INPUTS

  • Family:

    HCT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OTHER DECODER/DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    53 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HCT154DB,118 Overview

Use the download button to access the 74HCT154DB,118 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT, or try a keyword search, such as Decoder/Drivers
