74HCT157PW,112 - Nexperia

Description: 74HC(T)157 - Quad 2-input multiplexer@en-us

Download 74HCT157PW,112 Model

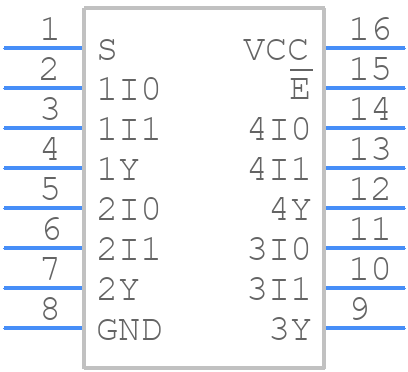

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HCT157PW,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT403-1
click to zoom
3D Models
74HCT157PW,112 - Nexperia  - 3D model - Small Outline Packages - SOT403-1
click to zoom

74HCT157PW,112 Details

  • Manufacturer Part Number:

    74HCT157PW,112

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT403-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1995-11-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MULTIPLEXER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Prop. Delay@Nom-Sup:

    41 ns

  • Propagation Delay (tpd):

    41 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74HCT157PW,112 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HCT157PW,112 is 4.5 V to 5.5 V, as specified in the datasheet. However, it's recommended to operate the device at a stable voltage of 5 V ± 10% for optimal performance.
  • To ensure signal integrity, it's essential to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed. Additionally, consider using a low-skew clock distribution network and ensuring that the device is properly decoupled.
  • While the 74HCT157PW,112 is specified for 5 V operation, it can be used in a 3.3 V system with some limitations. The device will still function, but its performance may be degraded, and the output voltage levels may not meet the required specifications. It's recommended to consult the datasheet and perform thorough testing to ensure the device meets the system requirements.
  • The 74HCT157PW,112 has a maximum power dissipation of 500 mW. To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design practices. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • Yes, to minimize EMI and radiation, follow proper PCB layout practices, such as keeping signal traces short and away from the device's power pins, using a solid ground plane, and avoiding parallel signal traces. Additionally, consider using shielding or a Faraday cage to contain EMI radiation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HCT157PW,112 Overview

Use the download button to access the 74HCT157PW,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT, or try a keyword search, such as Multiplexer/Demultiplexers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.

Parts related to 74HCT157PW,112

Showing 0 results

74HCT157PW,112 Alternates

Showing results

Image Part Number Model
Part Image 74HCT157PW,118 NXP Semiconductors

Multiplexer, HCT Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16

Part Image 74HCT257PW,118 NXP Semiconductors

Multiplexer, HCT Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16

Part Image 74HCT157PW-T NXP Semiconductors

Multiplexer, HCT Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16

Part Image SN74AHCT257PWLE Texas Instruments

Multiplexer, AHC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16

Part Image M74HCT257TTR STMicroelectronics

Multiplexer, HCT Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16

For a full list of alternate parts for 74HCT157PW,112, check out Findchips.com
