The recommended operating voltage range for the 74HCT166DB,112 is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a stable voltage of 5V ± 10% for optimal performance.
To ensure reliable operation of the 74HCT166DB,112 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within the recommended temperature range of -40°C to +125°C.
The maximum clock frequency that the 74HCT166DB,112 can handle is 30 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system's noise margin, signal integrity, and other factors. It's recommended to consult the datasheet and perform thorough testing to determine the maximum clock frequency for a specific application.
When powering up the 74HCT166DB,112, it's essential to ensure that the power supply voltage (VCC) is stable and within the recommended range before applying any input signals. During power-down, the device should be powered down in a controlled manner to prevent any unwanted latch-up or damage. It's recommended to follow the power-up and power-down sequences recommended in the datasheet or application notes.
The 74HCT166DB,112 has built-in ESD protection measures, including diodes and resistors, to protect the device from electrostatic discharge (ESD) events. However, it's still essential to follow proper ESD handling and storage procedures to prevent damage to the device. It's recommended to use ESD-safe handling equipment, such as wrist straps and mats, and to store the devices in ESD-safe packaging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74HCT166DB,112 Overview

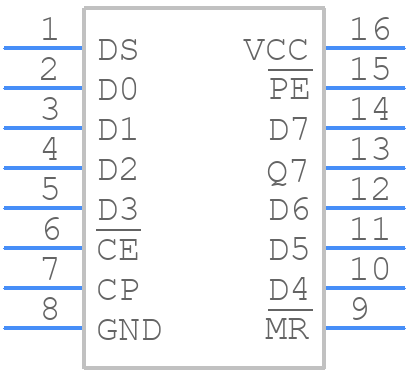

Use the download button to access the 74HCT166DB,112 schematic symbol, PCB footprint, and 3D model.
