74HCT30PW,118 - Nexperia

Description: 74HC(T)30 - 8-input NAND gate@en-us

Download 74HCT30PW,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

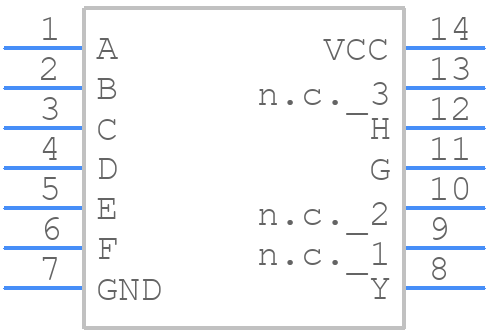

74HCT30PW,118 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HCT30PW,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT402-1
click to zoom
3D Models
74HCT30PW,118 - Nexperia - 3D model - Small Outline Packages - SOT402-1
click to zoom

74HCT30PW,118 Details

  • Manufacturer Part Number:

    74HCT30PW,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT402-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    1995-11-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    10

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Logic IC Type:

    NAND GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inputs:

    8

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    42 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74HCT30PW,118 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HCT30PW,118 is 4.5V to 5.5V, as specified in the datasheet.
  • To ensure the 74HCT30PW,118 is properly powered, make sure to connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground connection. Also, ensure that the power supply can provide enough current to drive the device.
  • The maximum frequency of operation for the 74HCT30PW,118 is typically around 30MHz, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for your specific use case.
  • To handle thermal management for the 74HCT30PW,118, ensure that the device is mounted on a suitable heat sink or PCB with good thermal conductivity. Also, avoid operating the device at high temperatures (above 85°C) for extended periods, as this can affect its reliability and lifespan.
  • The 74HCT30PW,118 has built-in ESD protection, with a human body model (HBM) rating of 2kV and a machine model (MM) rating of 200V. This provides a reasonable level of protection against electrostatic discharge, but it's still important to follow proper handling and storage procedures to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HCT30PW,118 Overview

Use the download button to access the 74HCT30PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT, or try a keyword search, such as Gates

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
