74HCT3G14DC,125 - Nexperia

Description: 74HC(T)3G14 - Triple inverting Schmitt trigger@en-us

Download 74HCT3G14DC,125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

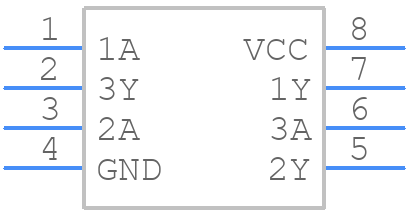

74HCT3G14DC,125 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HCT3G14DC,125 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT765-1
click to zoom
3D Models
74HCT3G14DC,125 - Nexperia - 3D model - Small Outline Packages - SOT765-1
click to zoom

74HCT3G14DC,125 Details

  • Manufacturer Part Number:

    74HCT3G14DC,125

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    2.30 MM, PLASTIC, MO-187, SOT-765-1, VSSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT765-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    10

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.3 mm

  • Logic IC Type:

    INVERTER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Inputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    48 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

74HCT3G14DC,125 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HCT3G14DC,125 is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
  • To ensure proper power and decoupling, connect a 100nF ceramic capacitor between the VCC pin and GND pin, as close to the device as possible. Additionally, use a low-ESR bulk capacitor (e.g., 10uF) on the power supply line to filter out noise and voltage drops.
  • The maximum frequency of operation for the 74HCT3G14DC,125 is 100MHz, as specified in the datasheet. However, the actual frequency of operation may be limited by the system's clock frequency, signal integrity, and other factors.
  • During power-up and power-down sequences, ensure that all input pins are tied to a valid logic level (either VCC or GND) to prevent undefined states. Also, avoid driving the output pins during power-up and power-down to prevent damage to the device or other components.
  • For optimal performance, follow good PCB layout and routing practices, such as keeping signal traces short and direct, using 50Ω impedance-controlled traces, and avoiding vias and stubs near the device. Also, ensure that the device is placed in a quiet area of the board, away from noise sources and high-current paths.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
