The recommended operating voltage range for the 74HCT4066BQ-Q100,1 is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.0V to 7.0V for short periods, but this may affect its performance and reliability.
To ensure correct switching, make sure to provide a clean and stable clock signal to the device. The clock signal should have a rise and fall time of less than 10ns, and the voltage levels should be within the recommended operating range. Additionally, ensure that the input signals are properly terminated and that the device is properly powered.
The maximum frequency of operation for the 74HCT4066BQ-Q100,1 is 30MHz, as specified in the datasheet. However, this frequency may vary depending on the specific application, operating conditions, and load capacitance. It's essential to consult the datasheet and perform thorough testing to determine the maximum frequency of operation for your specific use case.
To handle ESD protection, follow proper handling and storage procedures for the device. Use an anti-static wrist strap or mat when handling the device, and store it in an anti-static bag or container. Additionally, ensure that the device is properly grounded during assembly and testing. Nexperia also recommends using ESD protection devices, such as diodes or resistors, in the circuit design to protect the 74HCT4066BQ-Q100,1 from ESD events.
The power consumption of the 74HCT4066BQ-Q100,1 depends on the operating frequency, voltage, and load conditions. According to the datasheet, the typical quiescent current (ICC) is 4μA, and the typical dynamic current (IDD) is 20mA at 5V and 10MHz. However, it's essential to consult the datasheet and perform thorough testing to determine the power consumption for your specific use case.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74HCT4066BQ-Q100,1 Overview

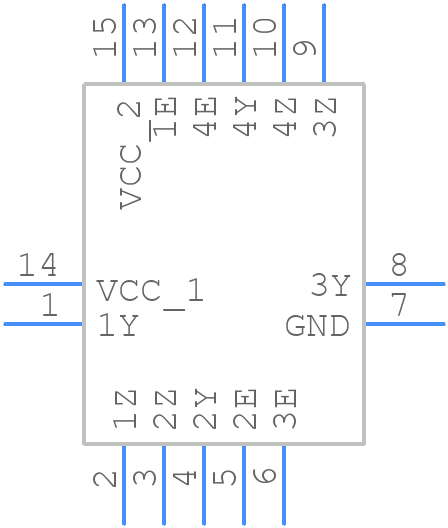

Use the download button to access the 74HCT4066BQ-Q100,1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT,
or try a keyword search, such as Multiplexers or Switches
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
