The recommended operating voltage range for the 74LCX126MTC is 2.3V to 3.6V, although it can operate as low as 1.65V with reduced performance.
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
While the 74LCX126MTC is designed for low-voltage operation, it can tolerate 5V inputs with some limitations. However, it's not recommended to operate the device at 5V continuously, as it may reduce the device's lifespan. If you must use it in a 5V system, ensure that the input signals are properly clamped and the device is operated within its recommended operating conditions.
To avoid latch-up or other issues, ensure that the power supplies to each 74LCX126MTC device are sequenced properly. Typically, this means powering up the devices in a specific order, such as powering up the clock signal last. Consult the datasheet and application notes for specific guidance.
The maximum clock frequency supported by the 74LCX126MTC is 100 MHz, although this may vary depending on the specific application and operating conditions. Consult the datasheet and application notes for specific guidance on clock frequency limitations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74LCX126MTC Overview

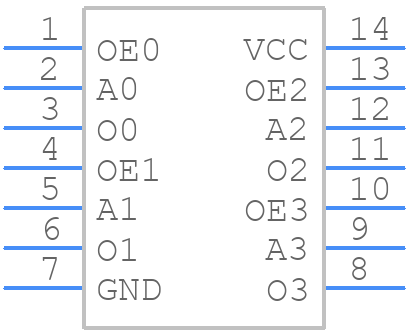

Use the download button to access the 74LCX126MTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LCX,
or try a keyword search, such as Bus Driver/Transceivers
