74LCX257FT - Toshiba

Description: Quad Multiplexer, TSSOP16B

Download 74LCX257FT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

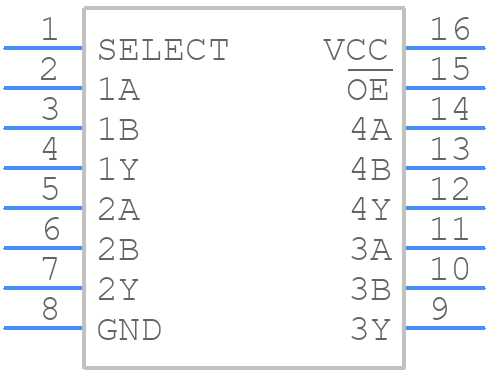

74LCX257FT - Toshiba - PCB symbol
