The recommended operating voltage range for the 74LCX374FT is 2.3V to 3.6V, although it can operate as low as 1.65V with reduced performance.
It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
The maximum frequency of operation for the 74LCX374FT is typically around 100MHz, although this can vary depending on the specific application and operating conditions.
It is recommended to use a termination resistor (e.g. 50Ω) at the output of the device to prevent signal reflections and ensure signal integrity.
The 74LCX374FT can sink or source up to 24mA of current per output pin, although this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74LCX374FT Overview

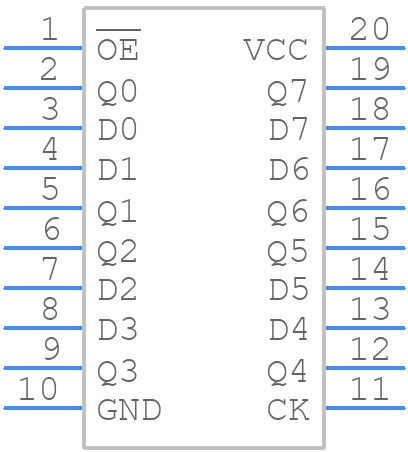

Use the download button to access the 74LCX374FT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LCX,
or try a keyword search, such as Bus Driver/Transceivers
