The recommended operating voltage range for the 74LV00PW,112 is 1.65 V to 5.5 V, as specified in the datasheet. However, it's recommended to operate the device within the range of 2.3 V to 5.5 V for optimal performance.
It's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
The maximum allowable voltage on the input pins of the 74LV00PW,112 is VCC + 0.5 V. Exceeding this voltage may cause damage to the device or affect its reliability.
Yes, the 74LV00PW,112 can be used in a 3.3 V system. The device is specified to operate from 1.65 V to 5.5 V, and 3.3 V is within this range. However, ensure that the input signals are within the recommended voltage range and that the device is properly decoupled.
It's recommended to decouple the 74LV00PW,112 from the power supply using a 0.1 μF to 1 μF ceramic capacitor between the VCC pin and the GND pin. This helps to reduce noise and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74LV00PW,112 Overview

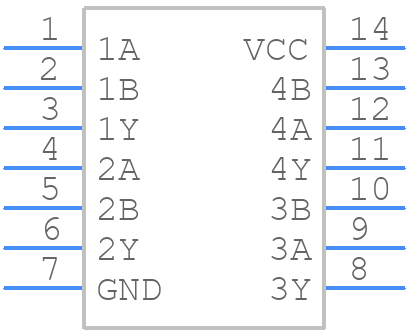

Use the download button to access the 74LV00PW,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LV0,
or try a keyword search, such as Gates
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
