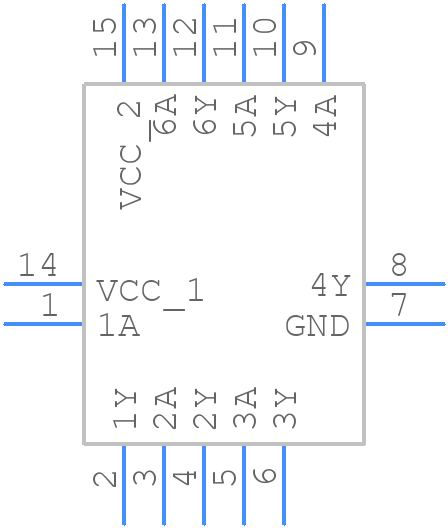

74LV04BQ,115 - Nexperia

74LV04BQ,115 Details

• Manufacturer Part Number:

  74LV04BQ,115

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  2.50 X 3 MM, 0.85 MM HEIGHT, PLASTIC, MO-241, SOT-762-1, DHVQFN-14

• Pin Count:

  14

• Manufacturer Package Code:

  SOT762-1

• Country Of Origin:

  Thailand

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Date Of Intro:

  1998-04-20

• Manufacturer:

  Nexperia

• YTEOL:

  5.85

• Family:

  LV/LV-A/LVX/H

• JESD-30 Code:

  R-PQCC-N14

• JESD-609 Code:

  e4

• Length:

  3 mm

• Logic IC Type:

  INVERTER

• Moisture Sensitivity Level:

  1

• Number of Functions:

  6

• Number of Inputs:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Propagation Delay (tpd):

  25 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  NICKEL PALLADIUM GOLD SILVER

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2.5 mm
