Part Image

74LV244D,112 - Nexperia

Description: Nexperia 74LV244D,112 Octal-Channel Buffer & Line Driver, 3-State, 20-Pin SOIC

Download ECAD Model

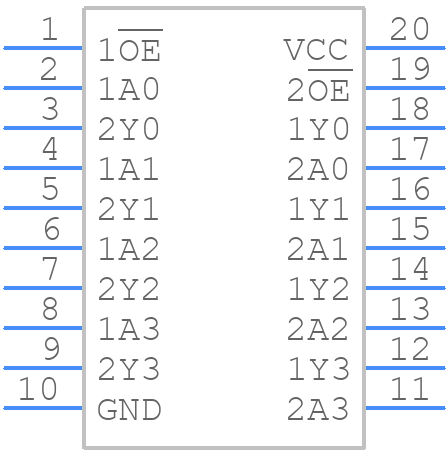

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

74LV244D,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT163-1
click to zoom

3D Models

74LV244D,112 - Nexperia  - 3D model - Small Outline Packages - SOT163-1
click to zoom

74LV244D,112 Details

  • Manufacturer Part Number:

    74LV244D,112

  • Brand Name:

    Nexperia

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    SOP,

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT163-1

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1992-10-01

  • Manufacturer:

    Nexperia

  • Risk Rank:

    1.15

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • Additional Feature:

    TYPICAL VOLP < 0.8V AT VCC = 3.3V, TA = 25 DEGREE C

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    31 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

Trust Checks

Manufacturer Provided
System Verified
Community Approved
Sponsored

74LV244D,112 Overview

Use the download button to access the 74LV244D,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LV2, or try a keyword search, such as Bus Driver/Transceivers

Parts related to 74LV244D,112

Showing 0 results

74LV244D,112 Alternates

Showing results

Image Part Number Model
Part Image 74LV244D Nexperia

Bus Driver, LV/LV-A/LVX/H Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20

Part Image 74LV244D,118 Nexperia

74LV244 - Octal buffer/line driver; 3-state@en-us SOP 20-Pin

Part Image 74LV244D-T NXP Semiconductors

IC LV/LV-A/LVX/H SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SOT-163, SO-20, Bus Driver/Transceiver
