74LV595DB,118 - Nexperia

Description: 74LV595 - 8-bit serial-in/serial-out or parallel-out shift register; 3-state@en-us

Download 74LV595DB,118 Model

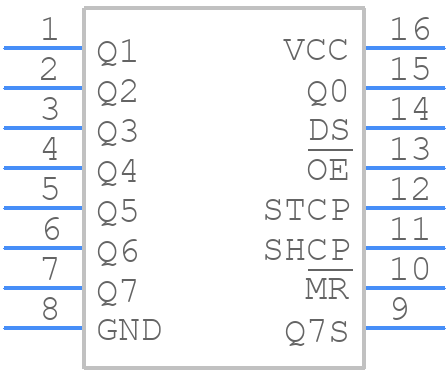

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LV595DB,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT338-1
click to zoom
3D Models
74LV595DB,118 - Nexperia  - 3D model - Small Outline Packages - SOT338-1
click to zoom

74LV595DB,118 Details

  • Manufacturer Part Number:

    74LV595DB,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP1

  • Package Description:

    5.30 MM, PLASTIC, MO-150, SOT338-1, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT338-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1994-08-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT

  • Count Direction:

    RIGHT

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Propagation Delay (tpd):

    77 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    20 MHz

74LV595DB,118 Frequently Asked Questions (FAQs)

  • The maximum clock frequency is 30 MHz, but it's recommended to check the timing diagrams and calculations in the datasheet to ensure the device can meet the specific application requirements.
  • To ensure proper synchronization, the clock signal should be applied to the clock input (CLK) before the data is applied to the data input (D). Also, the clock signal should be stable before the data is latched.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the clock signal (CLK) and data signal (D). This ensures that the device is properly initialized and avoids any potential latch-up conditions.
  • Yes, the 74LV595DB,118 can be used as a level shifter, but it's essential to ensure that the input voltage levels are within the specified range (VCC - 0.5 V to VCC + 0.5 V) to maintain proper operation.
  • During power-up, the OE pin should be held high (enabled) until the device is fully powered up and the clock signal is stable. During power-down, the OE pin should be held low (disabled) to prevent any unwanted output transitions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LV595DB,118 Overview

Use the download button to access the 74LV595DB,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LV5, or try a keyword search, such as Shift Registers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
