74LVC16244APVG - Renesas Electronics

Description: The 74LVC16244A 16-bit buffer/driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters and can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. All pins of the 74LVC16244A can be driven from either 3.3V or 5V devices which allows the use of the device as a translator in a mixed 3.3V/5V supply system. The 74LVC16244A operates at -40C to +85C

Download 74LVC16244APVG Model

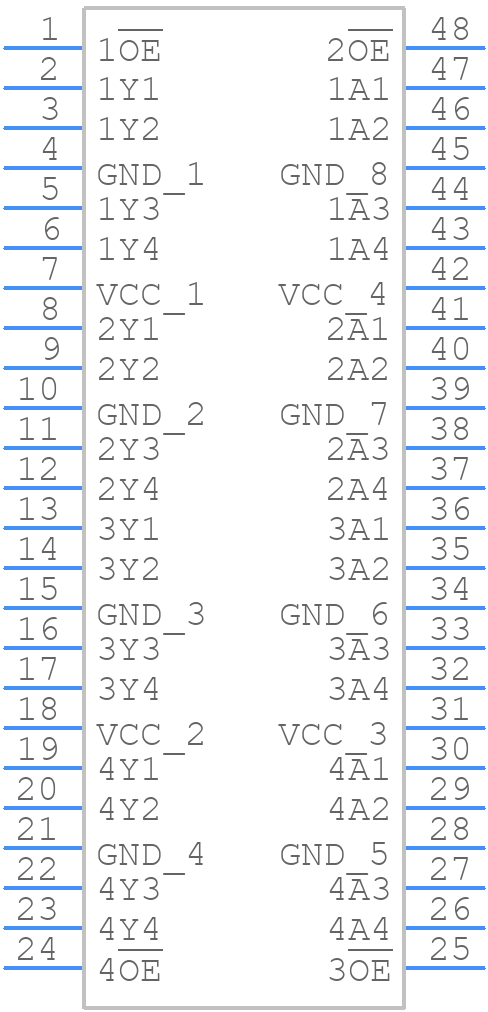

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

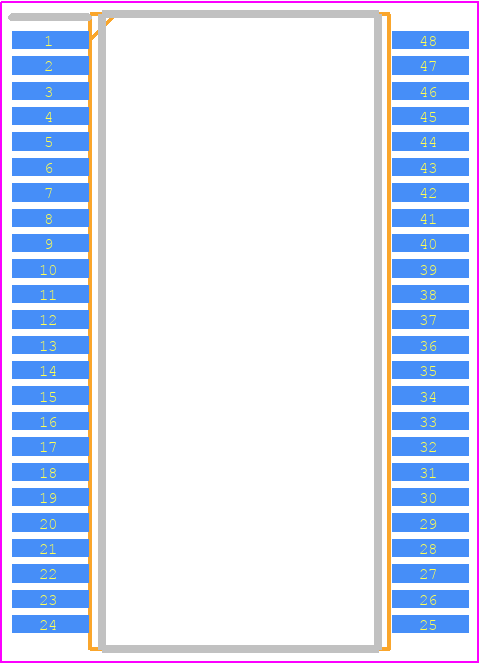

74LVC16244APVG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PVG48
click to zoom
3D Models
74LVC16244APVG - Renesas Electronics  - 3D model - Small Outline Packages - PVG48
click to zoom

74LVC16244APVG Details

  • Manufacturer Part Number:

    74LVC16244APVG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PVG48

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    15.875 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    4

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    4.1 ns

  • Propagation Delay (tpd):

    4.7 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.794 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.493 mm

74LVC16244APVG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74LVC16244APVG is 1.65V to 3.6V.
  • It is recommended to power up the VCC pin first, followed by the input signals, and then the output signals. During power-down, the output signals should be turned off first, followed by the input signals, and finally the VCC pin.
  • The maximum allowable voltage on the input pins of the 74LVC16244APVG is 5.5V, regardless of the VCC voltage.
  • The 74LVC16244APVG is specified to operate within the temperature range of -40°C to 125°C. Ensure that the device is operated within this range to maintain its performance and reliability.
  • The recommended termination scheme for the 74LVC16244APVG is to use a 50Ω pull-up resistor to VCC for each output pin, and a 50Ω pull-down resistor to GND for each input pin.
