74LVC16244APVG8 - Renesas Electronics

Description: The 74LVC16244A 16-bit buffer/driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters and can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. All pins of the 74LVC16244A can be driven from either 3.3V or 5V devices which allows the use of the device as a translator in a mixed 3.3V/5V supply system. The 74LVC16244A operates at -40C to +85C

Download 74LVC16244APVG8 Model

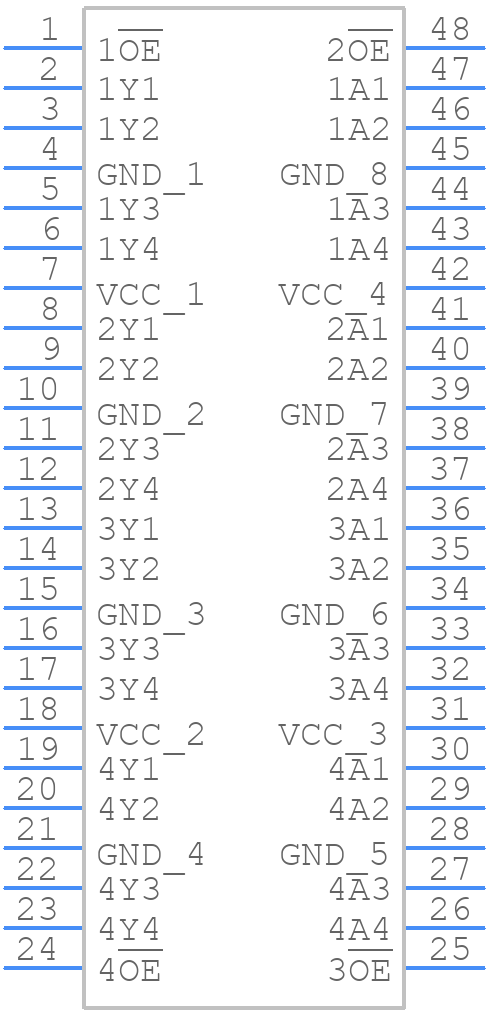

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

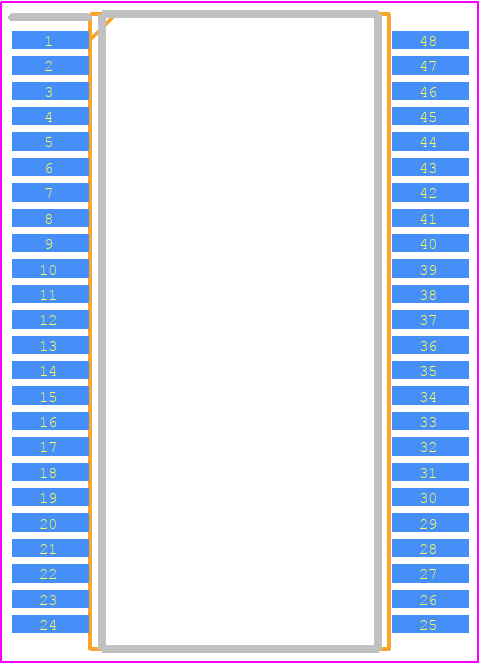

74LVC16244APVG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PVG48
click to zoom
3D Models
74LVC16244APVG8 - Renesas Electronics  - 3D model - Small Outline Packages - PVG48
click to zoom

74LVC16244APVG8 Details

  • Manufacturer Part Number:

    74LVC16244APVG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PVG48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    15.875 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    4

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    4.1 ns

  • Propagation Delay (tpd):

    4.7 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.794 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.493 mm

74LVC16244APVG8 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74LVC16244APVG8 is 1.65V to 3.6V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors or series resistors to reduce signal reflections. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • While the 74LVC16244APVG8 is designed for low-voltage applications, it can tolerate 5V inputs, but the output voltage will be limited to the supply voltage (VCC). However, it's essential to ensure that the input signals are within the recommended voltage range to prevent damage or malfunction.
  • The maximum clock frequency supported by the 74LVC16244APVG8 is 100 MHz, but this can vary depending on the specific application, PCB design, and operating conditions.
  • To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals. Additionally, consider using a power sequencing controller or a reset controller to manage power-up and power-down sequences.
