74LVC16373ADGG,112 - Nexperia

Description: 74LVC16373A; 74LVCH16373A - 16-bit D-type transparent latch with 5 V tolerant inputs/outputs; 3-state@en-us

Download 74LVC16373ADGG,112 Model

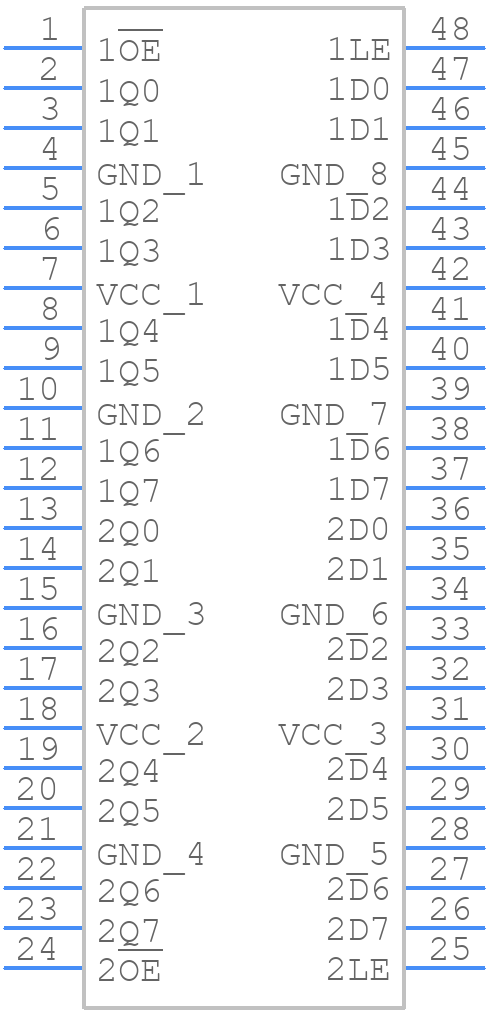

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LVC16373ADGG,112 - Nexperia PCB footprint - Other - Other - 74LVC16373ADGG,112-2
click to zoom
3D Models
74LVC16373ADGG,112 - Nexperia  - 3D model - Other - 74LVC16373ADGG,112-2
click to zoom

74LVC16373ADGG,112 Details

  • Manufacturer Part Number:

    74LVC16373ADGG,112

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    6.10 MM, PLASTIC, MO-153, SOT-362-1, TSSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SOT362-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    111 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    7 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

74LVC16373ADGG,112 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74LVC16373ADGG,112 is 1.65 V to 3.6 V.
  • Yes, the 74LVC16373ADGG,112 is 5V tolerant, meaning it can accept 5V input signals, but it is not recommended to operate the device at 5V supply voltage.
  • The maximum clock frequency supported by the 74LVC16373ADGG,112 is 100 MHz.
  • No, the 74LVC16373ADGG,112 does not have built-in slew rate control. However, the output transition time can be controlled by adding external resistors in series with the output pins.
  • Yes, the 74LVC16373ADGG,112 is available in a lead-free package, which is RoHS compliant.
