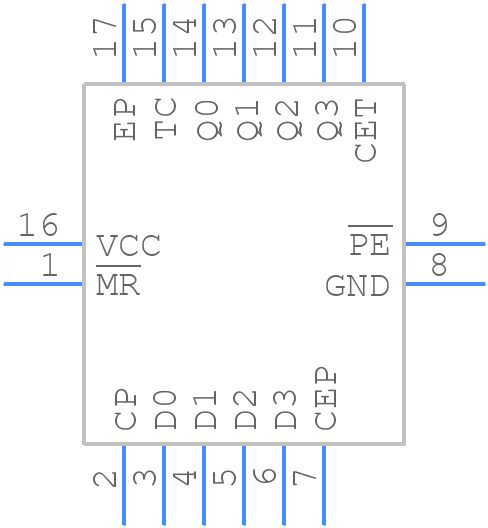

74LVC163BQ,115 - Nexperia

74LVC163BQ,115 Details

• Manufacturer Part Number:

  74LVC163BQ,115

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  2.50 X 3.50 MM, 0.85 MM HEIGHT, PLASTIC, MO-241, SOT-763-1, DHVQFN-16

• Pin Count:

  16

• Manufacturer Package Code:

  SOT763-1

• Country Of Origin:

  Mainland China, Thailand

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Date Of Intro:

  2017-02-01

• Manufacturer:

  Nexperia

• YTEOL:

  6.3

• Count Direction:

  UP

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PQCC-N16

• JESD-609 Code:

  e4

• Length:

  3.5 mm

• Load Capacitance (CL):

  50 pF

• Load/Preset Input:

  YES

• Logic IC Type:

  BINARY COUNTER

• Max Frequency@Nom-Sup:

  120000000 Hz

• Max I(ol):

  0.024 A

• Mode of Operation:

  SYNCHRONOUS

• Moisture Sensitivity Level:

  1

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  100 mA

• Prop. Delay@Nom-Sup:

  9.4 ns

• Propagation Delay (tpd):

  16.7 ns

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  1.2 V

• Supply Voltage-Nom (Vsup):

  2.7 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  NICKEL PALLADIUM GOLD SILVER

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  POSITIVE EDGE

• Width:

  2.5 mm

• fmax-Min:

  150 MHz
