74LVC240AD,118 - Nexperia

Description: 74LVC240A - Octal buffer/line driver with 5 V tolerant inputs/outputs; inverting; 3-state@en-us

Download 74LVC240AD,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

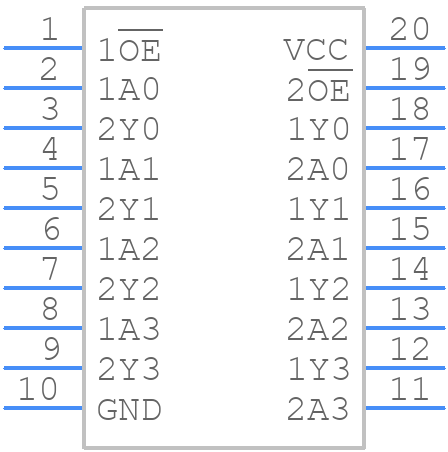

74LVC240AD,118 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74LVC240AD,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT 163-1
click to zoom
3D Models
74LVC240AD,118 - Nexperia - 3D model - Small Outline Packages - SOT 163-1
click to zoom

74LVC240AD,118 Details

  • Manufacturer Part Number:

    74LVC240AD,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    7.50 MM, PLASTIC, MS-013, SOT-163-1, SO-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT163-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    1996-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    6

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    7.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

74LVC240AD,118 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74LVC240AD,118 is 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, use proper PCB design techniques such as impedance matching, signal routing, and termination. Additionally, consider using series termination resistors and/or parallel termination capacitors to reduce signal reflections and ringing.
  • Yes, the 74LVC240AD,118 can be used in a 3.3V system. The recommended power supply voltage range is 2.7V to 3.6V, with a typical operating voltage of 3.3V. Ensure that the power supply is stable and has sufficient current capacity to support the device's operating current.
  • To handle bus contention, use a bus arbiter or a multiplexer to control access to the bus. Alternatively, use a bus buffer or a repeater to isolate the devices and prevent bus contention. Ensure that the devices are properly synchronized and that the bus is properly terminated.
  • The 74LVC240AD,118 can drive a maximum capacitive load of 50 pF per output, but this can vary depending on the specific application and operating conditions. It's recommended to check the device's output impedance and the capacitive load of the system to ensure proper signal integrity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74LVC240AD,118 Overview

Use the download button to access the 74LVC240AD,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVC, or try a keyword search, such as Bus Driver/Transceivers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
