74LVC273PW-Q100J - Nexperia

Description: 74LVC273-Q100 - Octal D-type flip-flop with reset; positive-edge trigger@en-us

Download 74LVC273PW-Q100J Model
Schematic
symbols

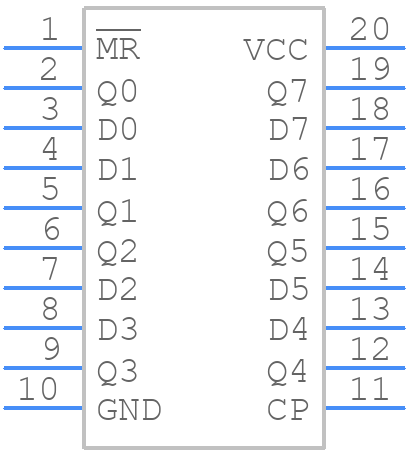

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LVC273PW-Q100J - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT360-1
click to zoom
3D Models
74LVC273PW-Q100J - Nexperia  - 3D model - Small Outline Packages - SOT360-1
click to zoom

74LVC273PW-Q100J Details

  • Manufacturer Part Number:

    74LVC273PW-Q100J

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP2

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT360-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.4

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    64000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    10.5 ns

  • Propagation Delay (tpd):

    22.2 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    150 MHz

74LVC273PW-Q100J Frequently Asked Questions (FAQs)

  • The 74LVC273PW-Q100J has an operating temperature range of -40°C to +125°C.
  • Yes, the 74LVC273PW-Q100J is lead-free and RoHS compliant, making it suitable for use in environmentally friendly designs.
  • The maximum power dissipation for the 74LVC273PW-Q100J is 500 mW.
  • Yes, the 74LVC273PW-Q100J is a 3.6V device, but it is 5V tolerant, meaning it can be used in a 5V system without damage.
  • The 74LVC273PW-Q100J comes in a TSSOP16 package with a body size of 5.3 mm x 4.4 mm.
