74LVC2G126RA3-7 - Diodes Incorporated

Description: Buffer, Non-Inverting 2 Element 1 Bit per Element 3-State Output X2-DFN1210-8

Download 74LVC2G126RA3-7 Model

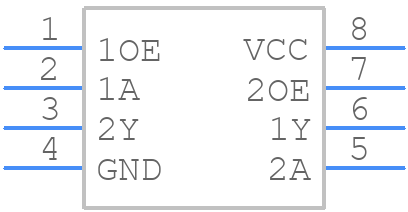

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74LVC2G126RA3-7 - Diodes Incorporated PCB footprint - Other - Other - X2-DFN1210-8 _2025-83
click to zoom
3D Models
74LVC2G126RA3-7 - Diodes Incorporated  - 3D model - Other - X2-DFN1210-8 _2025-83
click to zoom

74LVC2G126RA3-7 Details

  • Manufacturer Part Number:

    74LVC2G126RA3-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SON, SOLCC8,.04,12

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    1.2 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC8,.04,12

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    12.3 ns

  • Seated Height-Max:

    0.35 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.3 mm

  • Terminal Position:

    DUAL

  • Width:

    1 mm

74LVC2G126RA3-7 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74LVC2G126RA3-7 is 1.65V to 5.5V.
  • Yes, the 74LVC2G126RA3-7 is compatible with both 3.3V and 5V logic systems, making it a versatile component for various applications.
  • The maximum clock frequency that the 74LVC2G126RA3-7 can handle is 100 MHz.
  • Yes, the 74LVC2G126RA3-7 has built-in ESD protection, which helps protect the device from electrostatic discharge damage.
  • The package type of the 74LVC2G126RA3-7 is XSON8 (Very Thin Small Outline No Lead).
