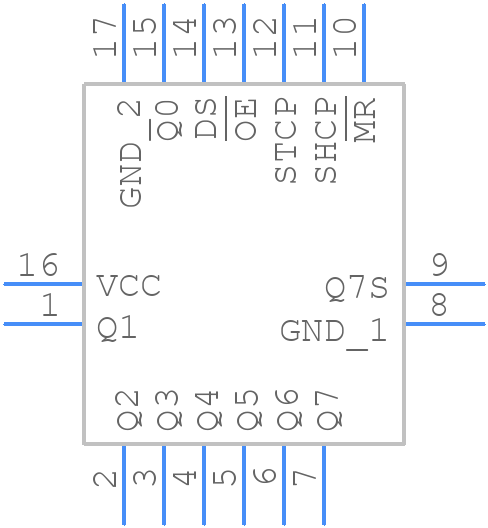

74LVC595ABQ,115 - Nexperia

74LVC595ABQ,115 Details

• Manufacturer Part Number:

  74LVC595ABQ,115

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  2.50 X 3.50 MM, 0.85 MM HEIGHT, PLASTIC, MO-241, SOT763-1, DHVQFN-16

• Pin Count:

  16

• Manufacturer Package Code:

  SOT763-1

• Country Of Origin:

  Mainland China, Thailand

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  8 Weeks

• Date Of Intro:

  2017-02-01

• Manufacturer:

  Nexperia

• YTEOL:

  6.4

• Count Direction:

  RIGHT

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e4

• Length:

  3.5 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  SERIAL IN PARALLEL OUT

• Max Frequency@Nom-Sup:

  115000000 Hz

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC16,.1X.14,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  100 mA

• Propagation Delay (tpd):

  18.2 ns

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  1.2 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  POSITIVE EDGE

• Width:

  2.5 mm

• fmax-Min:

  115 MHz
