Part Image

74LVT573PW,112 - Nexperia

Description: Nexperia 74LVT573PW,112 8bit-Bit Latch, Transparent D Type, 3 State, 20-Pin TSSOP

Download ECAD Model

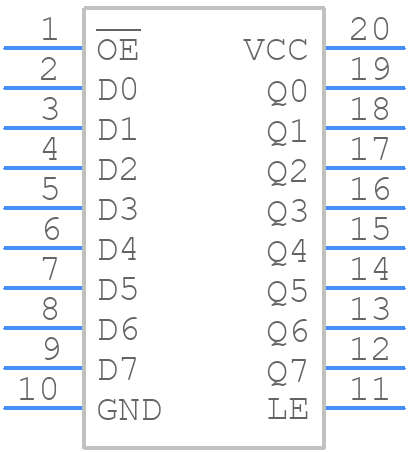

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

74LVT573PW,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT360-1
click to zoom

3D Models

74LVT573PW,112 - Nexperia  - 3D model - Small Outline Packages - SOT360-1
click to zoom

74LVT573PW,112 Details

  • Manufacturer Part Number:

    74LVT573PW,112

  • Brand Name:

    Nexperia

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP2

  • Package Description:

    TSSOP,

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT360-1

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1993-09-01

  • Manufacturer:

    Nexperia

  • Risk Rank:

    6.68

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • Additional Feature:

    BROADSIDE VERSION OF 373

  • Family:

    LVT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    12 mA

  • Propagation Delay (tpd):

    5.2 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

Trust Checks

Manufacturer Provided
System Verified
Community Approved
Sponsored

74LVT573PW,112 Overview

Use the download button to access the 74LVT573PW,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVT, or try a keyword search, such as Bus Driver/Transceivers
