- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 74LVTH16245MTD
- Part Number 74LVTH16245MTD
- Manufacturer onsemi
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Small Outline Packages

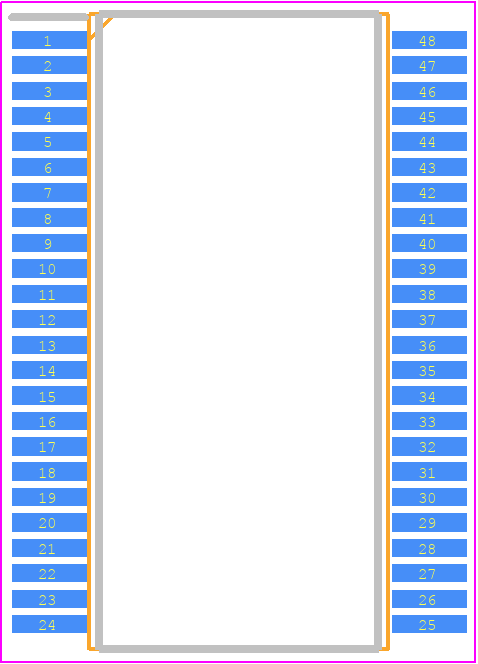

- Footprint Name Small Outline Packages - 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide Package Number MS48A
- Released Date Jan 11, 2017
- Last Modified Date May 12, 2025 4:34 AM UTC
- Pinout / Pin List Click Here (Member Only)
74LVTH16245MTD Details
-
Manufacturer Part Number:
74LVTH16245MTD
-
Manufacturer:
onsemi
Trust Checks
System Verified
74LVTH16245MTD Overview

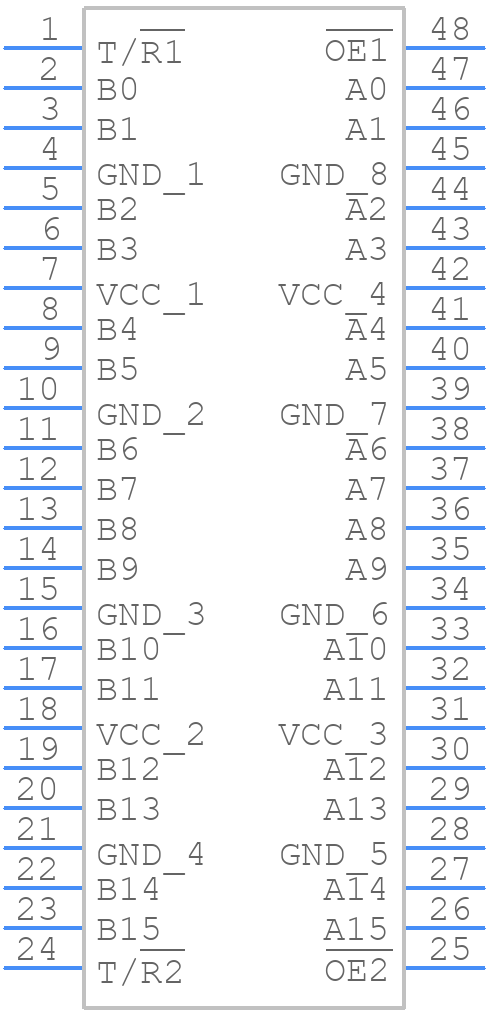

Use the download button to access the 74LVTH16245MTD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74LVT,
or try a keyword search, such as Bus Driver/Transceivers
