74LVX04MTCX - onsemi

Description: Guaranteed simultaneous switching noise level and dynamic threshold performance; Input voltage level translation from 5V to 3V; Ideal for low power/low noise 3.3V applications

Download 74LVX04MTCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

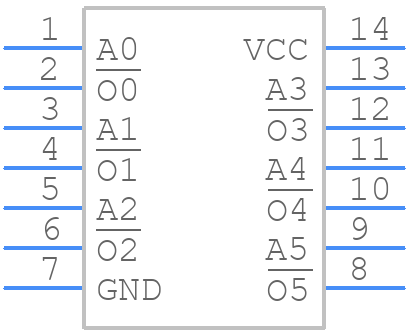

Symbol
74LVX04MTCX - onsemi - PCB symbol
click to zoom
PCB Footprints
74LVX04MTCX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB
click to zoom
3D Models
74LVX04MTCX - onsemi - 3D model - Small Outline Packages - TSSOP−14 WB
click to zoom

74LVX04MTCX Details

  • Manufacturer Part Number:

    74LVX04MTCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14 WB

  • Package Description:

    4.40 MM, MO-153AB, TSSOP-14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    11 ns

  • Propagation Delay (tpd):

    16 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74LVX04MTCX Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74LVX04MTCX is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
  • The 74LVX04MTCX has a maximum junction temperature of 150°C. To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB design and layout guidelines to minimize thermal resistance.
  • The recommended power-up sequence for the 74LVX04MTCX is to apply VCC before applying any input signals. This ensures that the device is properly initialized and minimizes the risk of latch-up or other unexpected behavior.
  • Yes, the 74LVX04MTCX is compatible with 3.3V systems. It is a low-voltage CMOS device that can operate from a supply voltage range of 1.65V to 3.6V.
  • To ensure EMC with the 74LVX04MTCX, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the device is properly decoupled from the power supply. Additionally, follow the guidelines in the onsemi application note AND8033/D for EMC design considerations.
