74LVXC3245WM footprint, schematic symbol and 3D model by onsemi

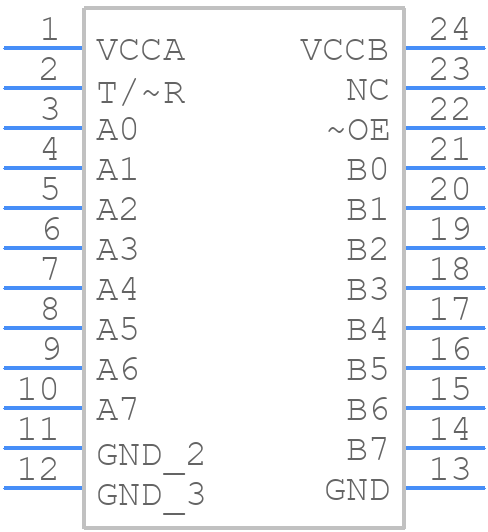

Symbol

click to zoom

PCB Footprints

74LVXC3245WM - onsemi PCB footprint - Other - Other - SOIC127P1032X265-24N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74LVXC3245WM
Part Number 74LVXC3245WM
Manufacturer onsemi
Pin Count 24
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - SOIC127P1032X265-24N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

74LVXC3245WM Details

Manufacturer Part Number:
74LVXC3245WM
Brand Name:
ON Semiconductor
Pbfree Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SOIC-24
Manufacturer Package Code:
M24B
HTS Code:
8542.39.00.60
Date Of Intro:
2017-12-26
Manufacturer:
onsemi
YTEOL:
0
Additional Feature:
PORT B REQUIRES 3V TO 5.5V
Control Type:
ENABLE LOW
Count Direction:
BIDIRECTIONAL
Family:
LV/LV-A/LVX/H
JESD-30 Code:
R-PDSO-G24
Length:
15.8 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
BUS TRANSCEIVER
Max I(ol):
0.024 A
Number of Bits:
8
Number of Functions:
1
Number of Ports:
2
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
3-STATE
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Power Supply Current-Max (ICC):
200 mA
Prop. Delay@Nom-Sup:
9 ns
Propagation Delay (tpd):
9 ns
Seated Height-Max:
2.65 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
7.5 mm

74LVXC3245WM Frequently Asked Questions (FAQs)

The recommended operating voltage range for the 74LVXC3245WM is 2.3V to 3.6V, although it can operate as low as 1.65V with reduced performance.
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors or series resistors to reduce signal reflections. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
While the 74LVXC3245WM is designed for low-voltage applications, it can tolerate 5V inputs with some limitations. However, it's essential to ensure that the output voltage does not exceed the maximum rating of 3.6V to prevent damage. Use a voltage translator or level shifter if necessary.
To prevent latch-up or damage, ensure that the power supply voltage (VCC) is applied to all devices simultaneously, or sequence the power-on in a way that prevents voltage differences between devices. A power sequencing controller or a simple RC filter can help achieve this.
The 74LVXC3245WM can sink or source up to 24mA per output, although this may vary depending on the operating voltage and temperature. Be sure to check the datasheet for specific current limits and thermal considerations.

Trust Checks

System Verified

74LVXC3245WM Overview

Use the download button to access the 74LVXC3245WM schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 74LVX, or try a keyword search, such as Bus Driver/Transceivers
