74VHC139FT - Toshiba

Description: Toshiba 74VHC139FT, 17 Decoder, Decoder, 2-of-4, Inverting, 16-Pin TSSOP

Download 74VHC139FT Model

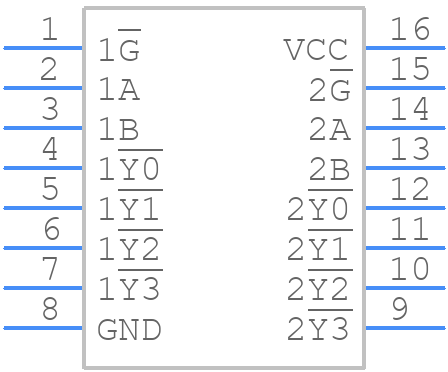

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC139FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16B
click to zoom
3D Models
74VHC139FT - Toshiba  - 3D model - Small Outline Packages - TSSOP16B
click to zoom

74VHC139FT Details

  • Manufacturer Part Number:

    74VHC139FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Logic IC Type:

    2-LINE TO 4-LINE DECODER

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Propagation Delay (tpd):

    16.5 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

74VHC139FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC139FT is 2.0V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to operate the 74VHC139FT within its specified temperature range (-40°C to 125°C) and to follow proper thermal management practices, such as providing adequate heat sinking and airflow.
  • The maximum clock frequency supported by the 74VHC139FT is 100 MHz.
  • When using the 74VHC139FT in a system, it is recommended to sequence power-on and power-off in the following order: VCC, then input signals, then clock signals. This helps to prevent latch-up and ensures reliable operation.
  • The maximum current rating for the 74VHC139FT's output pins is 8mA.
