74VHC157FT - Toshiba

Description: CMOS IC Quad Multiplexer 2-Ch TSSOP16B

Download 74VHC157FT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

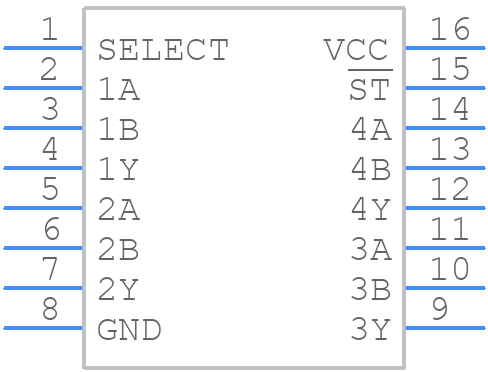

74VHC157FT - Toshiba - PCB symbol
click to zoom
PCB Footprints
74VHC157FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 74VHC157FT-1
click to zoom
3D Models
74VHC157FT - Toshiba - 3D model - Small Outline Packages - 74VHC157FT-1
click to zoom

74VHC157FT Details

  • Manufacturer Part Number:

    74VHC157FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MULTIPLEXER

  • Max I(ol):

    0.008 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Prop. Delay@Nom-Sup:

    10.5 ns

  • Propagation Delay (tpd):

    16.5 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

74VHC157FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC157FT is 2.0V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB layout, minimize trace lengths, and use termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • Yes, the 74VHC157FT can be used in a 3.3V system. However, the output voltage will be limited to 3.3V, and the device's power consumption will be higher compared to operating at a lower voltage. Ensure that the system's power supply can handle the increased power requirements.
  • To avoid latch-up or other issues, ensure that the power supply voltage is applied to all devices simultaneously, or sequence the power-on in a way that prevents any device from being powered on before the others.
  • The maximum clock frequency supported by the 74VHC157FT is 100 MHz, but this can vary depending on the specific application and system design. Consult the datasheet and perform simulations to determine the maximum clock frequency for your specific use case.
