74VHC174FT - Toshiba

Description: Hex D-Type Flip-Flop, TSSOP16B

Download 74VHC174FT Model

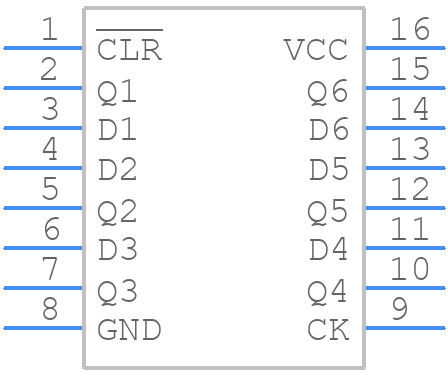

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC174FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-TSSOP16-0044-0.65-001-1
click to zoom
3D Models
74VHC174FT - Toshiba  - 3D model - Small Outline Packages - P-TSSOP16-0044-0.65-001-1
click to zoom

74VHC174FT Details

  • Manufacturer Part Number:

    74VHC174FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Number of Bits:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    16.5 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    130 MHz

74VHC174FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC174FT is 2.0V to 5.5V.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up conditions.
  • The maximum frequency of operation for the 74VHC174FT is 100 MHz.
  • The 74VHC174FT requires proper termination to prevent signal reflections and ensure reliable operation. A 50-ohm termination resistor should be connected between the output pin and VCC or GND, depending on the output logic level.
  • The maximum output current that the 74VHC174FT can sink or source is 8mA.
