74VHC175MTC - onsemi

Description: Quad D-Type Flip-Flop

Download 74VHC175MTC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

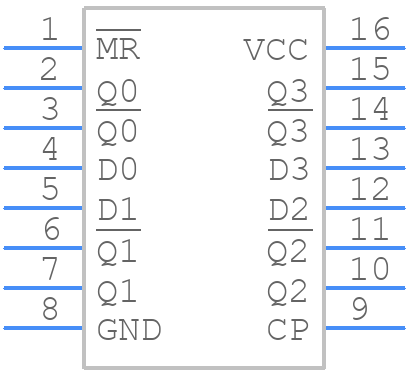

74VHC175MTC - onsemi - PCB symbol
click to zoom
PCB Footprints
74VHC175MTC - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 74VHC175MTC
click to zoom
3D Models
74VHC175MTC - onsemi - 3D model - Small Outline Packages - 74VHC175MTC
click to zoom

74VHC175MTC Details

  • Manufacturer Part Number:

    74VHC175MTC

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-16

  • Package Description:

    4.40 MM, MO-153AB, TSSOP-16

  • Manufacturer Package Code:

    948AH

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    AHC/VHC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    10.5 ns

  • Propagation Delay (tpd):

    17 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    125 MHz

74VHC175MTC Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC175MTC is 2.0V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the 3.0V to 5.0V range for optimal performance and to ensure compatibility with most digital systems.
  • It's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage during power transitions.
  • The maximum frequency of operation for the 74VHC175MTC is typically around 100 MHz, but this can vary depending on the specific application, operating voltage, and capacitive loading. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific design.
  • To ensure signal integrity and minimize noise, it's recommended to use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatches, and adding decoupling capacitors near the device. Additionally, consider using series termination resistors and/or parallel termination capacitors to reduce signal reflections and ringing.
  • Yes, the 74VHC175MTC is designed to be compatible with both 3.3V and 5V logic systems. However, it's essential to ensure that the input signals are properly level-shifted and conditioned to match the operating voltage of the device. Additionally, consider using voltage translation devices or level shifters to ensure proper signal transmission between different voltage domains.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74VHC175MTC Overview

Use the download button to access the 74VHC175MTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74VHC, or try a keyword search, such as FF/Latches
