74VHC240FT(BE) - Toshiba

Description: Buffers & Line Drivers

Download 74VHC240FT(BE) Model

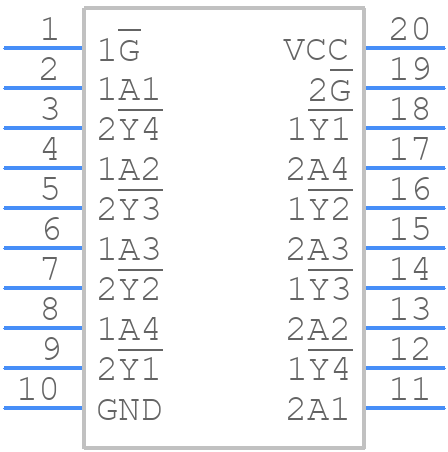

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC240FT(BE) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 74LCX273FT-1
click to zoom
3D Models
74VHC240FT(BE) - Toshiba  - 3D model - Small Outline Packages - 74LCX273FT-1
click to zoom

74VHC240FT(BE) Details

  • Manufacturer Part Number:

    74VHC240FT(BE)

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP, TSSOP20,.25

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.008 A

  • Number of Bits:

    4

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    8.5 ns

  • Propagation Delay (tpd):

    8.5 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

74VHC240FT(BE) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC240FT(BE) is 2.0V to 5.5V.
  • Unused inputs should be tied to VCC or GND to prevent floating inputs and ensure proper device operation.
  • The maximum frequency of operation for the 74VHC240FT(BE) is 100 MHz.
  • Yes, the 74VHC240FT(BE) is compatible with both 3.3V and 5V logic systems, making it a versatile component for various applications.
  • The power dissipation of the 74VHC240FT(BE) is typically 10 μW (max) at 2.0V and 25°C.
