74VHC373FT - Toshiba

Description: Octal D-Type Latch, TSSOP20B

Download 74VHC373FT Model

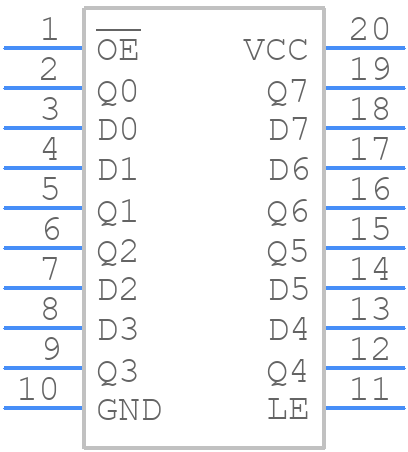

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC373FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-TSSOP20-0044-0.65-001
click to zoom
3D Models
74VHC373FT - Toshiba  - 3D model - Small Outline Packages - P-TSSOP20-0044-0.65-001
click to zoom

74VHC373FT Details

  • Manufacturer Part Number:

    74VHC373FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    16.5 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

74VHC373FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC373FT is 2.0V to 5.5V, although it can operate down to 1.65V with reduced performance.
  • To prevent damage to the output pins during power-up or power-down, it is recommended to use a pull-up or pull-down resistor on each output pin to ensure that the output is not floating.
  • The maximum frequency of operation for the 74VHC373FT is typically around 100MHz, although this can vary depending on the specific application and operating conditions.
  • Yes, the 74VHC373FT can be used in a 3.3V system, as it is designed to operate from 2.0V to 5.5V. However, the output voltage levels may not be fully compatible with 3.3V logic levels, so additional circuitry may be required to ensure proper operation.
  • During power-up or power-down, it is recommended to hold the latch enable (LE) input low to prevent unwanted data from being latched into the device. Once the power supply has stabilized, the LE input can be driven high to enable the latch function.
