74VHC541FT(BE) - Toshiba

Description: Buffers & Line Drivers BUFF/DVR TRI-ST 8BIT 20TSSOP

Download 74VHC541FT(BE) Model

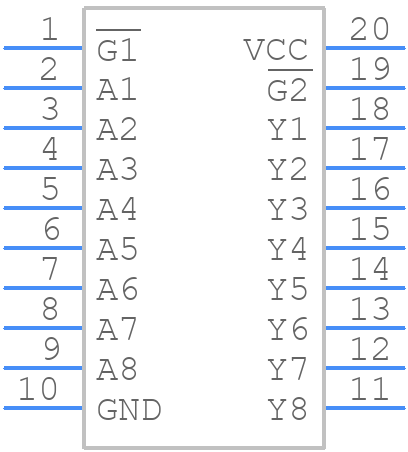

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC541FT(BE) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20B_2022
click to zoom
3D Models
74VHC541FT(BE) - Toshiba  - 3D model - Small Outline Packages - TSSOP20B_2022
click to zoom

74VHC541FT(BE) Details

  • Manufacturer Part Number:

    74VHC541FT(BE)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNI/BIDIRECTIONAL

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.008 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Prop. Delay@Nom-Sup:

    13.5 ns

  • Propagation Delay (tpd):

    13.5 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

74VHC541FT(BE) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC541FT(BE) is 2.0V to 5.5V.
  • Yes, the 74VHC541FT(BE) is compatible with both 3.3V and 5V systems, making it a versatile component for various applications.
  • The maximum clock frequency supported by the 74VHC541FT(BE) is 100 MHz.
  • No, the 74VHC541FT(BE) does not have built-in pull-up resistors. External pull-up resistors may be required depending on the application.
  • Yes, the 74VHC541FT(BE) is suitable for high-speed applications due to its fast propagation delay and high-frequency operation.
