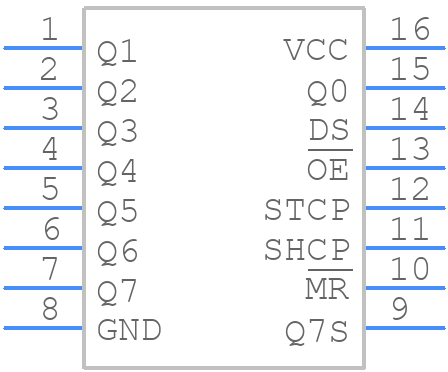

74VHC595PW-Q100J - Nexperia

74VHC595PW-Q100J Frequently Asked Questions (FAQs)

• What is the maximum clock frequency that can be used with this shift register?
  The maximum clock frequency for the 74VHC595PW-Q100J is 100 MHz, but it depends on the operating voltage and load conditions. It's recommended to check the timing characteristics in the datasheet and perform simulations or testing to ensure reliable operation.
• How do I ensure that the output pins are in a high-impedance state during power-up or power-down?
  To ensure that the output pins are in a high-impedance state during power-up or power-down, you can use an external pull-up or pull-down resistor on the OE (output enable) pin. This will prevent the outputs from floating and causing unintended behavior.
• Can I use this shift register to drive LEDs or other high-current loads?
  The 74VHC595PW-Q100J is designed to drive low-current loads such as other logic circuits or microcontrollers. It's not suitable for driving high-current loads like LEDs or relays. If you need to drive high-current loads, consider using a buffer or driver IC specifically designed for that purpose.
• How do I handle the latency or propagation delay through the shift register?
  The propagation delay through the 74VHC595PW-Q100J is typically around 10-20 ns, depending on the operating voltage and temperature. To handle latency, you can use a clock signal that is synchronized with the data signal, or use a FIFO or buffer to store the data temporarily while it's being shifted through the register.
• Can I use this shift register in a high-temperature or high-reliability application?
  The 74VHC595PW-Q100J is an automotive-grade device, which means it's designed to operate in harsh environments with high temperatures and vibrations. However, it's still important to check the device's specifications and ensure that it meets the requirements of your specific application.
