74VHC9126FT - Toshiba

Description: Buffers & Line Drivers SCHMITT BUFFER GATE VCC: 2-5.5

Download 74VHC9126FT Model

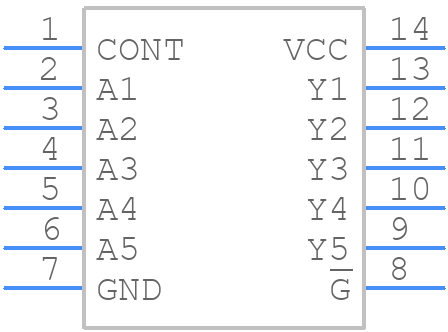

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74VHC9126FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14B
click to zoom
3D Models
74VHC9126FT - Toshiba  - 3D model - Small Outline Packages - TSSOP14B
click to zoom

74VHC9126FT Details

  • Manufacturer Part Number:

    74VHC9126FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    NO HI-IMPEDANCE STATE FOR 1 BUFFER

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    5

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    15 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

74VHC9126FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC9126FT is 2.0V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal management guidelines provided in the datasheet, such as keeping the junction temperature below 150°C and using a heat sink if necessary.
  • The maximum clock frequency that the 74VHC9126FT can handle is 100 MHz.
  • It is recommended to follow a controlled power-up and power-down sequence to prevent damage to the device. The power supply voltage should be ramped up and down slowly, and the clock signal should be stable before applying input signals.
  • The recommended termination scheme for the 74VHC9126FT is to use a series resistor and a parallel capacitor at the output pins to prevent signal reflections and ensure signal integrity.
