74VHC9151FT - Toshiba

Description: Buffers & Line Drivers SCHMITT BUFFER GATE

Download 74VHC9151FT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

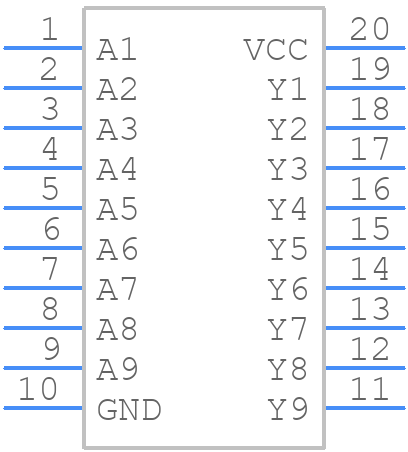

Symbol
74VHC9151FT - Toshiba - PCB symbol
click to zoom
PCB Footprints
74VHC9151FT - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20B
click to zoom
3D Models
74VHC9151FT - Toshiba - 3D model - Small Outline Packages - TSSOP20B
click to zoom

74VHC9151FT Details

  • Manufacturer Part Number:

    74VHC9151FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUFFER

  • Max I(ol):

    0.008 A

  • Number of Functions:

    9

  • Number of Inputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Prop. Delay@Nom-Sup:

    13 ns

  • Propagation Delay (tpd):

    20 ns

  • Schmitt Trigger:

    YES

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

74VHC9151FT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74VHC9151FT is 2.0V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C).
  • The maximum clock frequency that the 74VHC9151FT can handle is 100 MHz.
  • The 74VHC9151FT is a 5V-tolerant device, meaning it can accept input signals up to 5.5V even when operating at a lower voltage. However, when interfacing with devices that have different voltage levels, it is recommended to use level translators or voltage dividers to ensure signal integrity and prevent damage to the device.
  • The power consumption of the 74VHC9151FT depends on the operating frequency and voltage. According to the datasheet, the typical power consumption is 10 μA at 1 MHz and 3.3V, and 50 μA at 100 MHz and 3.3V.
